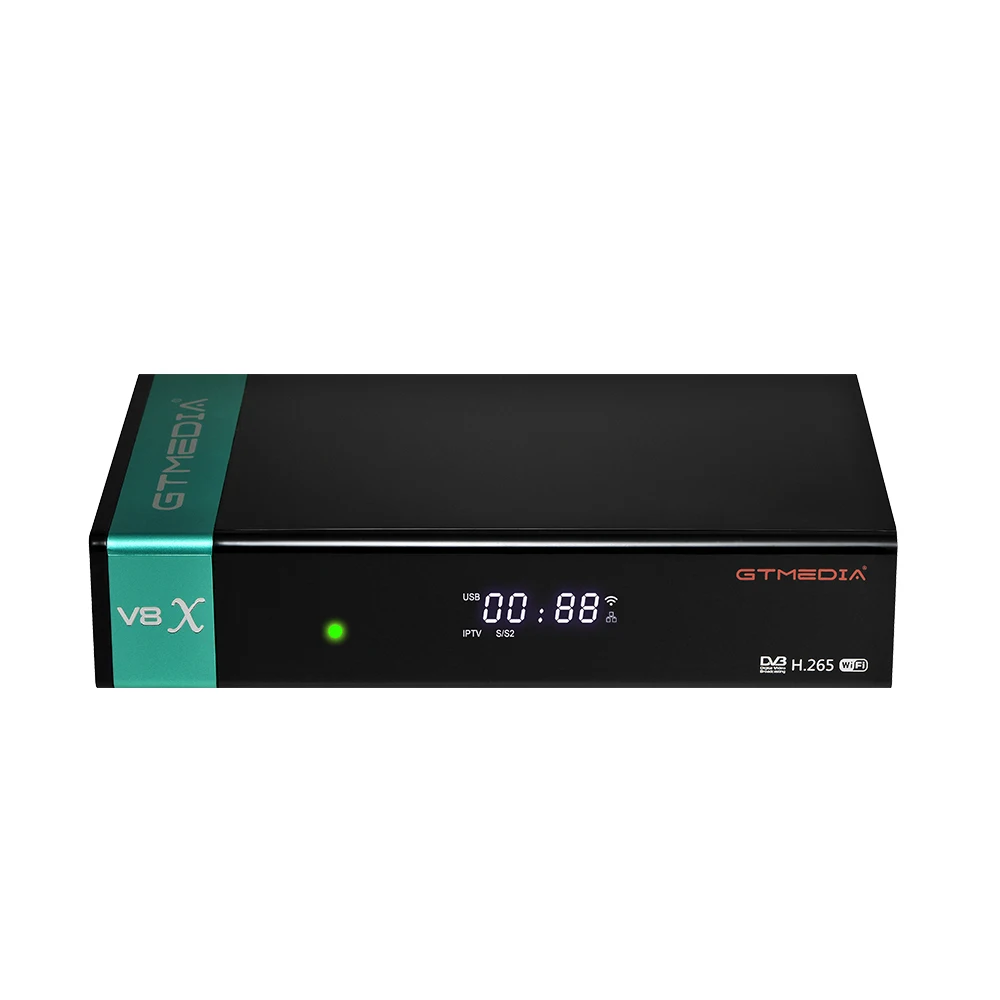

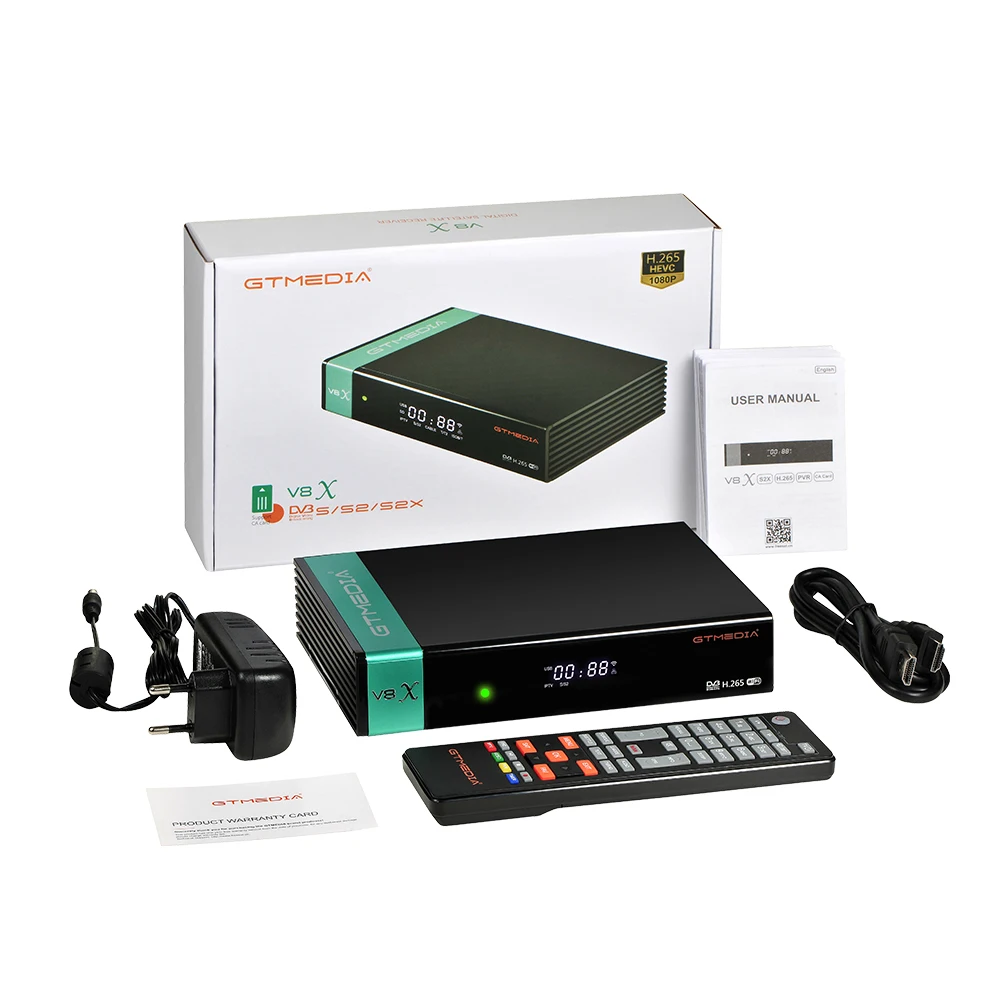

DVB-S2 Freesat V8X Receptor gtmedia V8 nova Decoder DVB-S2 H.265 V8 Receive

Main Chip Sets

CPU

770MHz Dual Core

Flash Memory

64MB SPI Flash

DDR2 Memory

1G RAM

TS Demux

Demultiplexer

ISO/IEC 13818-1

Input Bit Rate

Max 100Mbit/s

Video Decode

Video Decode

HEVC main profile@level 4.1 and main10 profile@L4.1,High tier
MPEG-2 MP@ML
H.264 BP,MP&HP@L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile@L5
VC1 SP@ML, MP@HL, AP@L0-3
H263 baseline profile
JPEG decoder

TV System

Automatic PAL/NTSC conversion

Aspect Mode

Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box

Video effects

Standard, Default, Vivid.

Video Resolution

1080P, 1080I, 720P, 576P, 480P, 576I, 480I

HDMI Color Space

RGB, YUV422, YUV444, Auto

Audio Decode

Audio Decode

MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,
Dolby AC3/AC3+, DRA CH/5.1CH

Sound Mode

LEFT/RIGHT/STEREO/MONO

Sampling Frequency

32KHz,44.1KHz,48KHz

Audio Out

LPCM Out, BS Out

Hardware specifications

Panel display

4-digit white LED display (Support function display)

LED Indicator

Power ON :Green; Standby :Red

Button

NOT

Wifi

Built in 2.4G WiFi Support IEEE 802.1.1b/g/n

IR

Exit IR for 38KHz,Infra Remote control

Rear Panel

LNB IN (Frequency Range950MHz to 2150MHz)

HD OUT (up to 1080P)

SCART OUT

AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND)

1*CA card solt

1*USB HOST

1*RJ45

1*RS232 (3-pin 3.5 mm jack)

DC IN (DC12V/1.5A)

DVB-S/S2 specificati-ons

System standard

ETS 302 307

Frequency Range

950~2150MHz for DVB-S/S2/S2X baseband demodulator

LNB Power and Polarization

DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection

Input Level Range

-80dBm ~ -20dBm (average power)

Symbol Rates

DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK

Forward error correction rate

1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range

±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Symbol Rates

2 ~ 90MSPS(Code Rate 1/2)

Roll-off factors

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Code Rates

1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC code rates

ANT. Connector

Connector:IEC TYPE F Input Impedance:75 Ω

Sortware Features

Standard

Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard

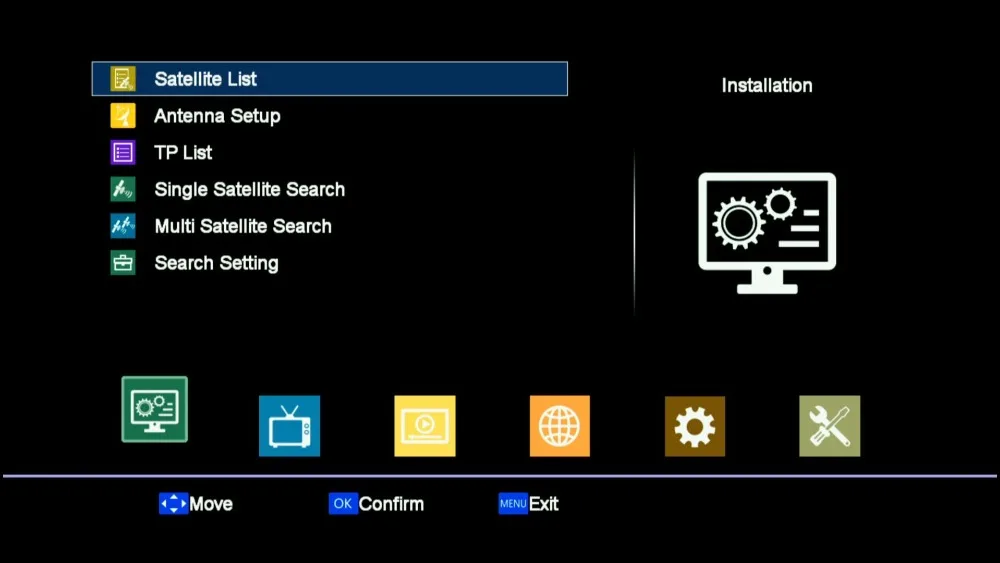

Channel Search

Support automatic network search for new added transponders

Channels Number

6000+ channels TV and Radio programmable

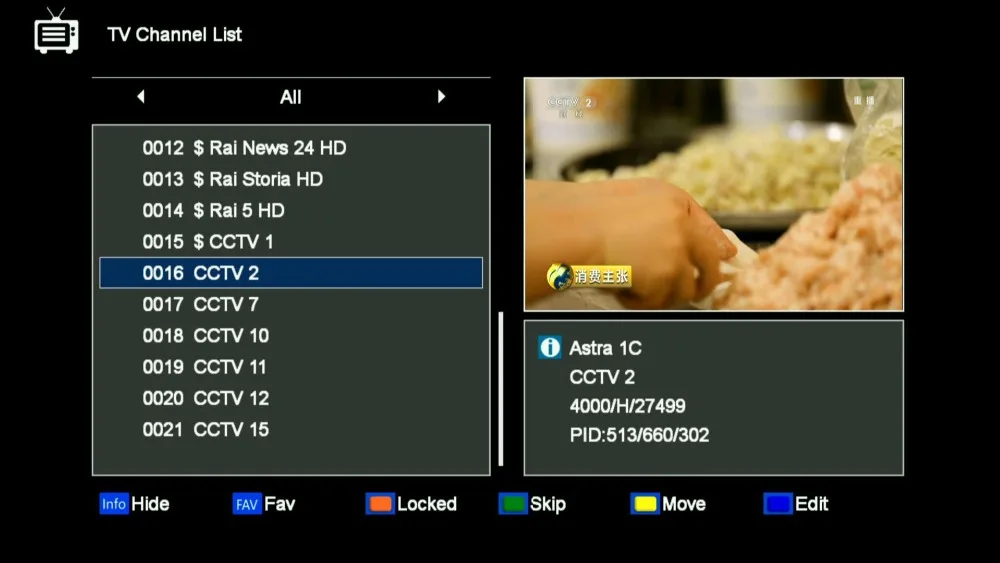

Channel

Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)

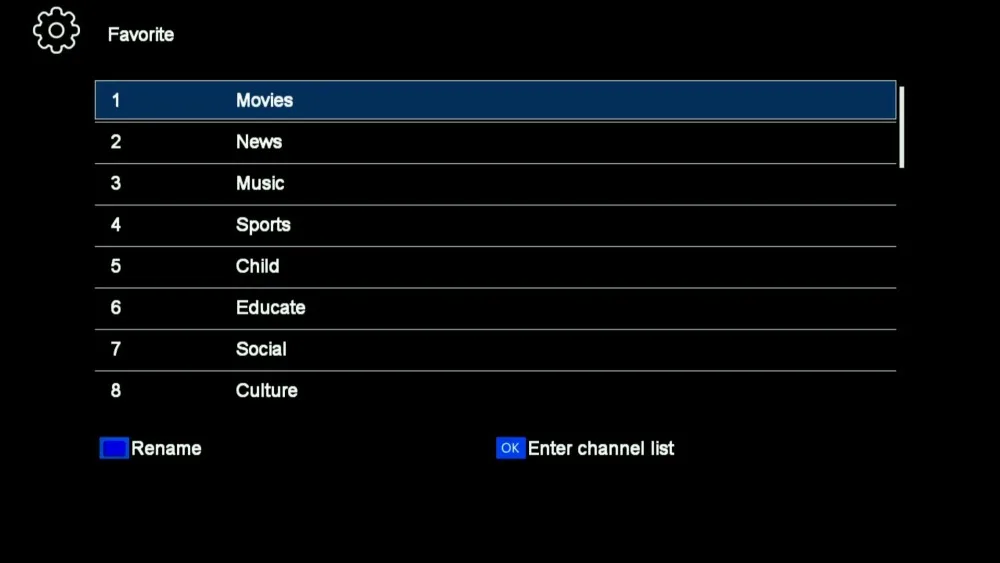

Favorites

31 different favorite groups selection

OSD Language

English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.

OSD Color

32-bits OSD with anti-flickering

OSD Setting

Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.

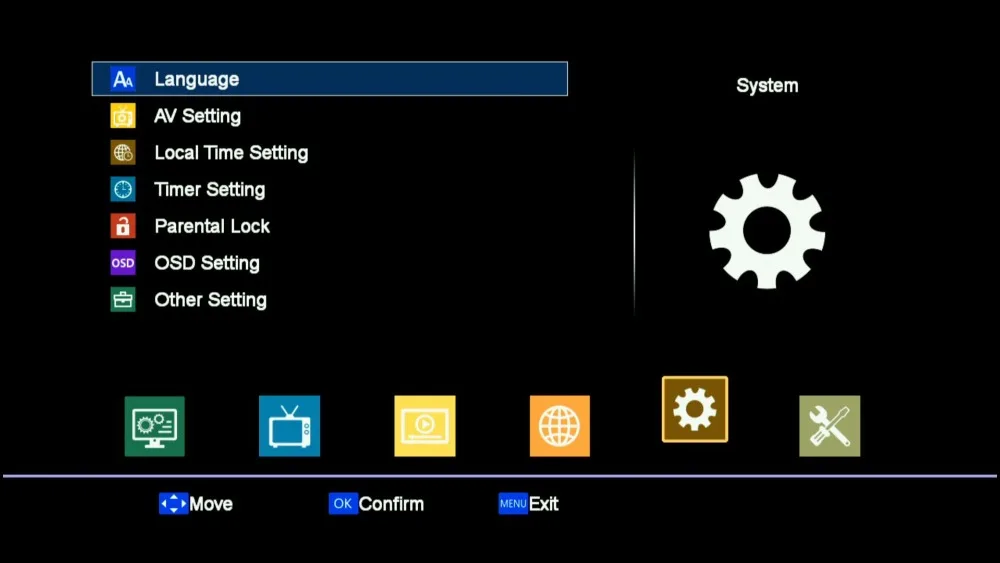

Other Setting

Sets up multiple habitual operation Settings

Parental Ctrl

Parental control for channels

Easy Menu

Plug and Play installation, with an easy to use Menu System

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Subtitle

support DVB EN300743 and EBU

Teletext

support DVB ETS300472 by VBI

SoftUpgrade

Software upgrades through USB port, or FTP upgrade.

Time Set

Time set by GMT offset automatic and manual,Summer Time support

Timer

5 event timers,off/Once/Daily/Weekly Mode
